Connecting the Real Time Shipping Quotes app consists of the following steps:
Obtain Your API Authentication Credentials
To successfully connect the app, first need your API authentication credentials. If you don’t have them, sign into the carrier’s website using your username and password and then use the following link to access the Web Services page located in the Developer Resource Center.
If you prefer to navigate to the carrier’s Web Services page instead of using the Web Services link, the link to the Developer Resource Center can be found in the footer of the carrier’s home page. Once you’re on the Developer Recourse Center page, look for and then click on the link for Web Services that is present under the Other products section in the left side bar menu.
On the Web Services page, locate and then click on the MOVE TO PRODUCTION link.
Click on the GET PRODUCTION KEY button.
On the Application Profile page, answer the questions with the following responses, and then click the Continue button.
| Question | Answer |
|---|---|
| Do you intend to resell your software? | No |
| Please check the box next to each type of web services you intend to use in your integration solution: | Check the option for Web Services for Shipping |
| Please indicate whether you are a developing your integration solution as a Corporate Developer or as a Consultant. | Corporate Developer |
On the License Agreement page click the I Accept button to advance to the next step.
The next two steps will ask you to provide information about your company’s account and contact information, and your developer info. On the Developer Info page enter the name and contact information of the person or firm who performs most of the work and maintenance on your website.
When you complete the steps you will be delivered to the Confirmation page. Your Production password will be emailed to you. The Confirmation page will contain your Authentication Key and your Meter Number. Record all of these values. You will use them to establish the connection to your freight account in the next step.
Connect the application to the Rating API.

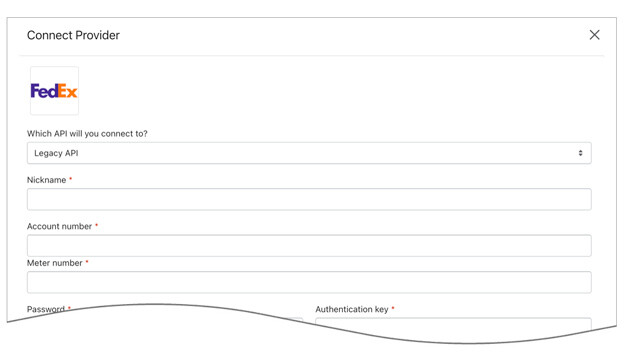

The Connection Settings page is used to establish the app’s connection to the carrier’s web services. Enter the information prompted for, then click Save Settings. After the settings have been saved, click the Test Connection button. You’ll see a success message if the app was able to establish a connection with the carrier’s servers. If the test failed, something about your connection settings information is incorrect. Make the necessary corrections and try again.After you establish a successful connection, return to the User’s Guide for the app.
| Which API will you connect to? | If you obtained credentials to the SOAP (legacy) API, select Legacy API. |
| Nickname | Enter a nickname to use for the app. It is for your use only and will not be visible to visitors to your store. |
| Account Number | Enter your carrier provided account number. |
| Meter Number | Enter the Meter Number received when you completed the process for obtaining the Authentication Key in the previous step. |
| Password | Enter he Production Password that was emailed to you when you completed the process for obtaining the Authentication Key in the previous step. |
| Authentication Key | Enter your API Authentication Key. This is the Authentication Key you retrieved in the previous step. |
| Hub Id | Selecting a hub is only required if you will be utilizing SmartPost service. If you are, select the hub used for your SmartPost service. If you are uncertain, contact the carrier’s Customer Support department. (800-453-3339) |
